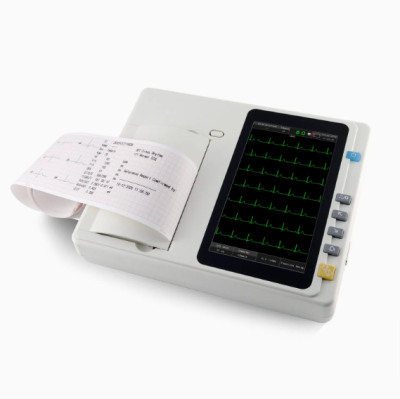

Introducing the ECG Machine 3 Channel – Advanced Electrocardiograph ECG301, your reliable partner for accurate and efficient heart monitoring. Designed for hospitals, clinics, and professional healthcare settings, this state-of-the-art device delivers precision and ease of use.
The ECG301 features a three-channel system that captures detailed electrocardiograph readings, allowing for real-time monitoring and analysis of heart activity. With its high-resolution display and intuitive interface, healthcare professionals can quickly interpret results, ensuring timely diagnosis and treatment.
Key Features:
- 7-inch high-resolution color touchscreen
- 12-lead simultaneous acquisition and display
- ECG Automatic measurement and interpretation function
- Complete digital filters, resisting baseline drift, AC and
- EMG interference
- Compact and lightweight design
- Support USB flash disk and micro SD card to extend
- memory
- Software upgrade via USB/SD card
- Built-in rechargeable Li-ion battery
Whether you’re looking to upgrade your clinic’s diagnostic tools or need a reliable device for mobile healthcare services, the ECG Machine 3 Channel ECG301 offers an unbeatable combination of performance, reliability, and affordability.
Choose precision. Choose the ECG301.
Standard Configuration:
Main machine 1 PC
Patient cable. 1 PC
Limb electrode: 1set (4pcs)
Chest electrode: 1set(6pcs) 1 PC
Power cable:
80mm*20M recording paper: 1 PC
Paper axis:
1 PC
Power cord:
1 PC
Packing:
Single package size: 32*25*17cm
Single gross weight: 2.8 KG
8 units per carton, package size:
54*33*75cm, total gross weight 22 KG
Technique Specification
Items | Specification |
Lead | Standard 12 leads |
Acquisition Mode | Simultaneous 12 leads acquisition |
Measurement Range | ±5mVpp |
Input circuit | Floating; Protection circuit against Defibrillator effect |
Input Impedance | 250ΜΩ |
Input circuit current | <0.05μΑ |
Record mode | Automatic: 3CH×4+1R, 3CH×4,3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2; Manual: 3CH, 2CH, 3CH+1R, 2CH+1R; Rhythm: Any lead selectable. |
Filter |
EMG Filter: 25 Hz/30 Hz / 40Hz/75 Hz/100 Hz / 150Hz DFT Filter: 0.05 Hz/ 0.15 Hz AC Filter: 50 Hz/60Hz |
CMRR | >100dB |
Patient leak current | <10μΑ (220V-240V) |
Frequency Response | 0.05Hz~150Hz (-3dB) |
Sensitivity | 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (error:±5%) |
Anti-baseline Drift | Automatic |
Time constant | 23.2s |
Noise level | <15µVp-p |
Paper speed | 12.5 mm/s, 25 mm/s, 50 mm/s |
Recording mode | Thermal printing system |
Paper specification | Roll 80mmx20M |
Safety Standard | IEC I/CF |
Sample Rate | Normal: 1000sps/channel |
Power Supply | AC: 100~240V, 50/60Hz, 30VA-100VA DC: 14.8V/2200mAh, built-in lithium battery |
