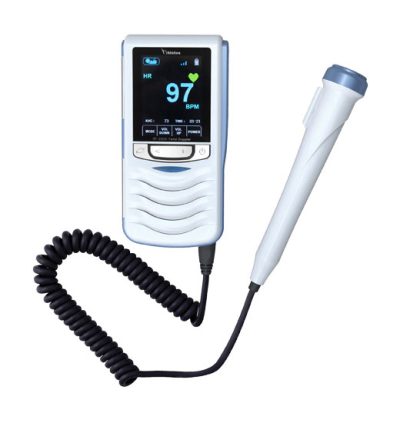

BT-220

Availability: In stock

Hi-bebeS can help mothers recover their pre-maternal body figure by checking their body the delivery of babies.

Hi-bebeS is not only just ordinary Fetal Doppler but is an innovative fetal Doppler providing addi-
tional function such as body fat analyzer and heart rate check of mother. Also, accoustic stimulator
fuction can stimulate the fetus to check more exact status of fetus. Moreover, Hi-bebeS can help
mothers recover their pre-maternal body figure by checking their body fat and heart rate periodically
after the delivery of babies.

Categories: ,
Spread the love

Specification



C : BT-220C Color LCD L : BT-220L Mono LCD
Functional Characteristics
FHR Display
Ultrasound Frequency 2 or 3MHz Type Mono LCD (L)
Ultrasound Intensity 10mW/cm² or less 2.4″ TFT Color LCD (C)
FHR Range 50 ~ 240bpm ±2% (L) Low Battery 2 levels (L), 4 levels (C)
30 ~ 240bpm ±2% (C) FHR Quality                   (Heart Symbol) Full(Stable), Empty(HR Searching)
FHR Resolution 1bpm
Mode Graphic & Numeric (C)
HR 3min Averaging Value Display (C)
Audio Output Auto Shut Off
Output 1.2W Sound Off 1min
Earphone Jack 3.5mm  Power Off 3min
Mother(C) Function
Heart Rate Range 40 ~ 200bpm ±2%  AST(Acoustic Stimulator) High(100Hz) / Low(75Hz)
Body Fat Measurement BIA & Impedance of Upper Body Interchangeable Probe
Sensitivity PC Interface
10 weeks Onward Sound Card S/W : BCM-200
Power
Battery 1.5V x 2, AA Type Operating Time 280min
Standard Configuration
Operation manual 1ea Ultrasound Gel 60ml 1ea
Battery (1.5V AA Type) 2ea Carrying Pouch 1ea
Options
Rechargeable Battery Charger
Rechargeable mini USB Cable
Warranty
Main Unit & Probe 1year
Physical Characteristics
Dimension Weight
Main Unit    66(W) x 27(D) x 132(H)mm Main Unit & Probe 190g (L), 200g (C)
Probe 29.5(W) x 27.3(D) x 162(H)mm
Packing 185(W) x 115(D) x 80(H)mm Packing 450g
Carton Box (10ea) 410(W) x 250(D) x 220(H)mm Carton Box (10ea) 5Kg
Environmental Conditions
Operating Temperature 10 to 40°C (50 ~ 104°F) Storage Temperature –20 to 60°C (–4 ~ 140°F)
Operating Humidity 5 ~ 85% non-condensing Storage Humidity 0 ~ 95% non-condensing
Certificates
Certificates KFDA, CE, FDA Classifications Class II, Type BF
Standard    EN60601-1, EN60601-1-2 Waterproof Probe : IPX7
