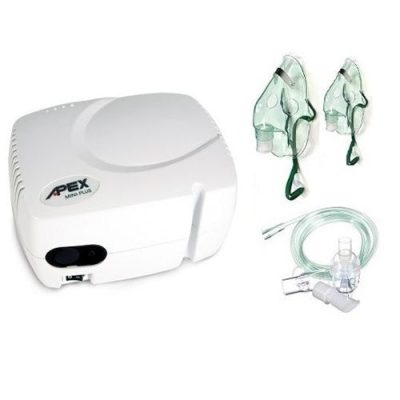

Apex Mini Plus Nebulizer Machine

DESCRIPTION

The Mini Plus is a compressor nebulizer designed for easy portability, especially for people on the move. The compact size, light weight and convenient carrying handle of the Mini Plus facilitates portability and allows users to keep their Mini Plus accessible at all time

Motor-piston drive for reliable, consistent performance.

Delivers aerosolized particles of 0.5-5 microns Dispenses 3 cc of medication in 10 minutes or less. Reliable output for efficient treatment.

Convenient tube holder design

Flow outlet fitting Air filter and on/off switch are positioned around the periphery on the front panel and recessed for extra protection

Features • Compact and travel-friendly. Cost effective and practical. Recessed flow outlet fitting for extra protection. Motor-piston drive for reliable, consistent performance. Delivers 0.6-5.0 micron particles that can descend deeper into the respiratory tract.

SPECIFICATIONS

Electrical Rating:     120 VAC/60Hz, 1.2A    230 VAC/50Hz, 0.6A

(Note: Refer to the rating label on the product) : 230 VAC/60Hz, 0.6A

Maximum Compressor Pressure:    ≧35 psi    ≧35 psi

Operation Flow Rate:  ≧6.0 LPM  ≧5.5 LPM

Particle Size:    0.5~5 microns

Nebulization Rate:  0.2~0.3 ml/min

Dimensions ( W x D x H ):   14.0 x 18.8 x 10.0 cm

Weight:  1.8 kg
