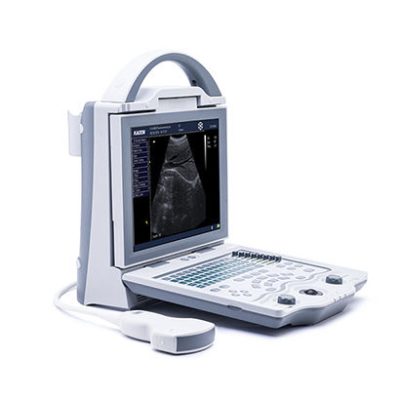

Portable Ultrasound Machine KX5600 Human B/W Ultrasound Scanner

SPECIFICATION:

• 10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle；
• Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.
• Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese；
• Two probe sockets, auto-identify different optional probe；
• Body marks:total 64 kinds body marks indicating probe position；
• Display mode:B,2B,4B ,B/M,M ；
• Adjustable depth: 10 grades, max depth to 236mm；
• Gain:0～127dB；
• Contrast:27～90dB；
• Gray scale:256；
• 8 steps intelligent TGC；
• Frame frequency: 30 frames /second
• 8 kinds pseudo colors；
• Image storage: 4G hard disk to permanently store about 5000 frames images；without loss when power off.
• Cine loop:256 frames；
• Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)；
  the gravel software package with real-time position line measurement
• Normal measurement: distance,perimeter, area, volume, angle, length and area stenosis ratio measurement.
• Cardio measurement:Depth, slope, heart rate, cycle；
• Gynecology measurement and analysis: gynecology general measurement and gynecology report.
• OB measurement including: 15 kind of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report.
• Urology measurement and analysis: residual urine volume, prostate volume, and urology report .
• One-key store: concise and practical;
• One-key review:fast, practical image review function;
• One-key Print；
• One-key Transfer the current frozen image to net workstation to complete its image text report and print directly;
• Concise and practical, easy operation. The system includes network workstation to complete data & report management (You don’t need to invest more to buy extra ultrasound working station)；
• Unique One-key-light keyboard function for black room use;
• Display brightness adjustable；
• Dual TV output: PAL/NTSC, can connect video printer when necessary；
• Power supply:100-240V～ 1.2-0.6A frequency:50-60Hz；
• Power supply adaptor output:DC12.8V 3.0A；
• Main unit weight:4.5kg(without accessories)；
• Main unit dimension:256×150×326mm(L×W×H)；
