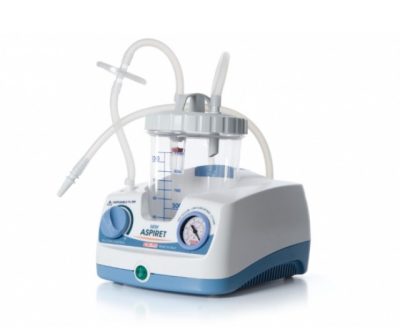

New Aspiret – Portable suction units

NEW ASPIRET is a desk-type electric suction unit for the aspiration of body liquids, oral, nasal and tracheal aspiration in adults or children.

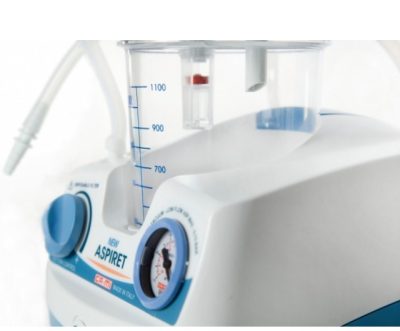

Suitable for tracheotomized patients, minor surgical applications and post-operative therapy in home-care. Main unit equipped with vacuum-meter (bar & kPa) and vacuum regulator.
Complies with EN 60601-1-11 “for use in the home healthcare environment” and carries IP21 degree of protection.

AVAILABLE CONFIGURATIONS
RE 310001 1 jar 1000 ml
RE 310001/01 1 jar 2000 ml
with FLOVAC® Disposable Liners
RE 310002 1 jar 1000 ml
RE 310002/01 1 jar 2000 ml

INCLUDED ACCESSORIES
Liquid Collection Jar with overflow valve system (different options, see below)
6×10 Silicone Tubes (autoclavable) + Conical Connector ø 8-9-10mm
Antibacterial & Hydrophobic Filter (single-patient)
CH20 Canula
Power Cord with Schuko plug

FEATURES
Motor Oiless and maintenance-free piston pump
Power Feeding 230V-50Hz
ISO 10079-1Classification HIGH VACUUM / LOW FLOW
Max free air flow rate 15 l/min
Max Vacuum (adjustable) -0.75bar -75kPa -563mmHg
Noise Level 59,6 dB
Power consumption 184 VA
Fuse 1 x F1,6 A 250 V
Duty cycle Non-stop operation
Weight 2,2 Kg
Size 25x19x16 cm
IP classification IP21
Years of Warranty 2
Place of Manufacturing ITALY
