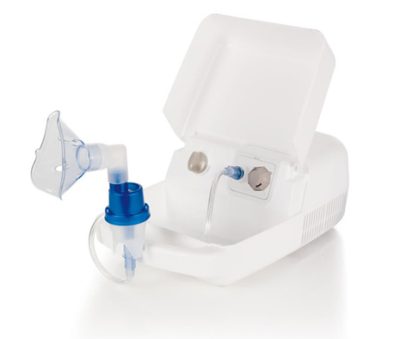

Nebulizer Atomizer

Features:

Silenced piston compressor driven nebulizer
For an effective treatment of the entire respiratory tract
Strong ABS case equipped with a carry handle, a handy accessory compartment and a cord storage compartment
Externally mounted air inlet with high performance replaceable filter
Equipped with  non-spill system Mouthpiece Adult Mask Connection house

COMPRESSOR TECHNICAL DATA:

COMPRESSOR………………………………………………….. PISTON COMPRESSOR

MAX PRESSURE………………………………………………… 185 kPa

OPERATING PRESSURE……………………………………… I SPEED 45 kPa – II SPEED 60 kPa

AIR FLOW………………………………………………………….. I SPEED 8 l/min – II SPEED 11 l/min

OPERATING CYCLE…………………………………………….. CONTINUOUS

NOISE LEVEL………………………………………………………. 56 dBA

WEIGHT……………………………………………………………… 1.4 kg

MDD CLASS ……………………………………………………….. lla

NEBULIZER TECHNICAL DATA:

CAPACITY …………………………………………………………… 12 ml

RESPIRABLE VOLUME………………………………………….. < 5 µm 75%

MMAD (Mass Median Aerodinamic Diameter) ….. 2.61 µm

NEB RATE I SPEED……………………………………………….. 0.20 ml/min

NEB RATE II SPEED………………………………………………. 0.35 ml/min

RESIDUAL VOLUME……………………………………………… 0.7 ml
