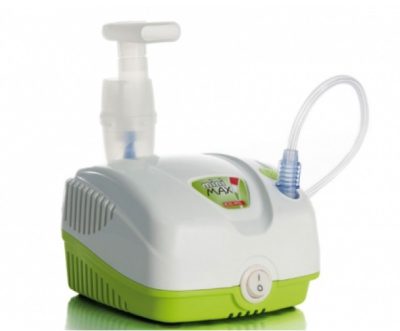

Mini-Max Aerosol delivery systems

AVAILABLE CONFIGURATIONS
RE 300250 —- MINIMAX

INCLUDED ACCESSORIES

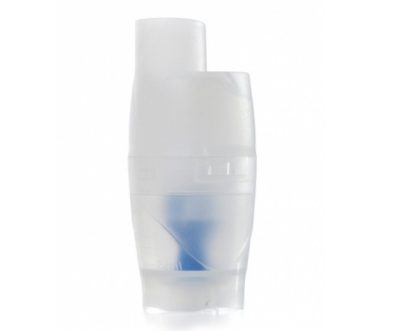

HI-FLO Jet Nebulizer
Adult Masks with elastic strings
Child Masks with elastic strings
Mouthpiece
Nosepiece (non invasive)
Air Tube
Air Filter
Carrying Bag
Detachable power cord

FEATURES
Compressor Oiless and maintenance-free piston pump
Power Feeding 230 V-50 Hz
Power consumption 170 VA
Max Pressure 2,2 bar 36 psi 250 kPa
Operating Pressure 1.10 bar 16 psi 110 kPa
Max Air Flow 14 L/min
Operating Air Flow 4,8 L/min
Neb-rate with 4 ml solution 0,35 ml/min
Mass Median Aerodinamic Diameter 2,44 μm (MMAD) according to EN-13544-1
Respirable Fraction (< 5μm) > 80%
Duty Cycle Ton: 20min | Toff: 40min
Noise Level (EN 13544-1 Standard) Approx. 60 dBA
Weight 1,45 Kg
Size (Main Unit) cm 13 x 10 x 15
Years of Warranty 3
Place of Manufacturing Italy
