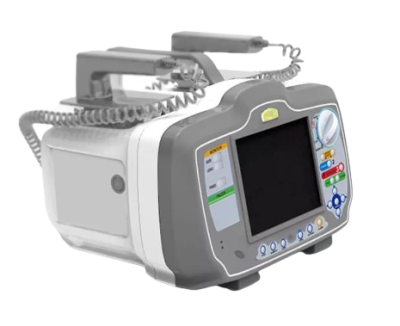

MEDEX MX360 DefibCare: Reliable Biphasic Defibrillator

Product Description

Smart Biphasic Monitor/Defibrillator with AED & Manual Function is used for immediate first-aid resuscitation functions in emergencies. It’s equipped with ECG monitoring and a thermal array printer. The high-resolution 7-inch vivid color screen can be viewed from any angle. It meets your clinical needs from Basic Life Support (BLS) to Advanced Cardiac Life Support (ACLS).

DM7000 is a defibrillation device, which can meet your clinical needs from Basic Life Support(BLS) to Advanced Cardiac Life Support (ACLS)

Display
Screen Type:High-resolution display
screen size:7 inch(17.7cm)diagonally
sweep speed :25mm/sec
Information: Heart Rate, Lead/Pads, Alarm on/off, Spo2, AED Functions and Prompts, Alarm Selection and Limits, Delivered Energy.

Defibrillator
Waveform: Biphasic
Charge Time: Less than 7 seconds with a new fully charged battery.
Energy Display: The monitor display indicates both selected and delivered energy.
Charge Prompt Type: Voice and visual prompts.
Electrode Impedance Measurement Range: 0-250 ohms.

ECG Monitoring
Patient Connection: 3-lead ECG cable, or 5-lead ECG cable, paddles.
Lead Selection: Displayed on monitor, paddles, I.II, III, AVR, AVL, AVF, V.
ECG Size; 0.25, 0.5, 1, 1.5, 2, 4 cm/mV display on monitor.
Heart Rate: 20-300BPM.
Heart Rate Alarm: On/Off is displayed on the monitor and is user-selectable.
Smart Alarms: Beeper/voice prompts indicate a shockable rhythm.

Battery
Type: Rechargeable, Ni-MH battery, 12V.
Operating Time: For a new, fully charged battery: 100 defibrillator discharges, or 3 hours minimum of continuous ECG
Monitoring, Additional parameters will affect operating time with different functions.

SpO2 Module
Measurement Range: 30~100%, +2% or -2% between 8-%~90%, other +5% or -5%
Alarm Range: The user sets a high limit and a low limit.
Alarm Accuracy: less than 12 sec.

Recorder
Paper:50mm thermal.
Speed: 12.5mm/sec, 25mm/sec, 50mm/sec. User-selectable 6-second delay.
Printing-out Modes: Manual or automatic, user-configurable.
On/Off Control: Front panel and paddle.
Automatic Function: 9-second recording initiated by alarm activation or defibrillator charger or de
Fibrillator discharge.

AED Mode
AED Function: Auto analyze and charge x3 with programmable auto energy level selection, screen prompts,
And voice prompts.
Shockable Rhythms: Ventricular fibrillation with amplitude>=140ms.
Charge Control: Control the device’s front panel, by pressing a key on the paddle.
Prompts: Voice and visual prompts

Manual Mode
Energy Selection: Selectable at 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 joules.
Synchronized Mode: Synchronizes defibrillator pulse to patient’s R-wave. The “SYNC” message is displayed on the monitor.

Applicable in a variety of situations

• Hospitals
• Ambulances
• Emergency Care
• Military Field Hospitals
• In-house Patient Transfer
• SpO2 & NIBP options available
