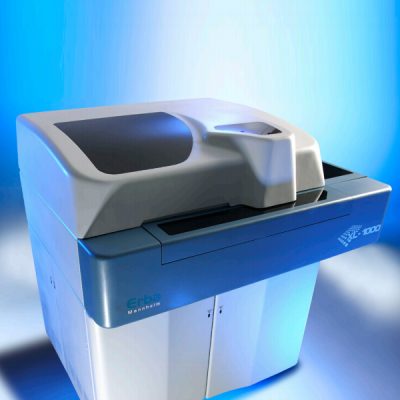

XL 1000 – new member of XL family, modern, fully automated Clinical Chemistry analyzer guaranteeing high resolution measurement with automatic sample conveyor for comfortable workflow in laboratories with high sample throughput.
Analyzer XL 1000 enables throughput of 800 tests/hour and up to 1040 tests/hour with ISE (Na/K/Cl/Li)
SYSTEM
- Discrete, open, automated, random access, patient prioritized, 1/2/3 reagent system
- DISPENSING OF SAMPLES AND REAGENTS
- Sample volume: 2-60 µl (0.1 µl step), 70 µl with ISE
- Reagent volume: 120 µl – 550 µl
- 3 dispensing probes ( R1, R2/R3) equipped with liquid -level sensor and crash detector
- Auto-dilution of samples and calibrators
- Clot detection
SAMPLES
- Serum, urine, plasma, CSF and other
ECONOMY
- Minimum reaction volume: 180 µl
- Reusable reaction cuvettes
MIXING SYSTEM
- 2 independent stirrers
- 3 user selectable mixing speeds
QUALITY CONTROL
- 4 levels of control material can be used
- Levey-Jennigs graphs
- Twin Plot diagrams for monitoring of systematic and random error
REACTION UNIT WITH WASH STATION
- 147 reusable hard glass cuvettes
- Possibility of replacement of individual cuvette
- Wash station – cuvette rinsing and drying in nine-step procedure
- Automatic cuvette blank measurement before analysis
SAMPLE AUTOLOADER
- 23 racks
- 115 sample positions on automatic autoloader
- Primary tubes 5, 7 and 10 ml, vacuum system tubes
- Barcode reader for sample identification
2 REAGENT TRAYS
- With 43 cooled position each
- Barcode reader for reagent identification
- 20 ml, 50 ml reagent containers, 5 ml tube with adaptor
- Option to use one reagent for several test simultaneously
STAT TRAY
- 45 positions
- Can be used for blank, controls, STAT samples
SOFTWARE
- Convenient user interface
- Connection to LIS
- Programmable auto-start from sleep mode including automatic daily maintenance
- Statistical methods of processing results
- Data export in selected format
MEASUREMENT MONITORING
- Colour indication of sample analysis
- Possibility of monitoring the reaction in real time
- Reagent volume monitoring
- Informative reports on ongoing analyzer status
