REF : 602BK

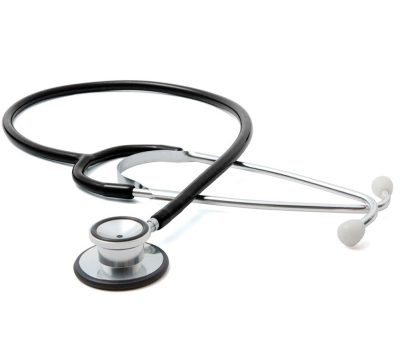

One of our most popular acoustic scopes, the 603 combines outstanding acoustic performance with rugged durability, now with AFD technology!
The Adscope® 603 series features:
- Combination diaphragm/bell adult chestpiece precisely machined to exacting tolerances from surgical stainless steel for outstanding performance and rugged durability
- ADC’s AFD technology provides enhanced acoustic response
- Light pressure for low, bell-type frequency, firm pressure for high, diaphragm-type frequency
- Extra large bell (1 3/8″ diameter) for unsurpassed low-frequency response
- Ultra-sensitive diaphragm (1 3/4″ diameter) for greater amplification and crisper high-frequency response
- Non-chill bell and diaphragm retaining rims for patient comfort
- Clinician headset boasts reinforcing yoke molded into the flexible 22″ PVC tubing and stainless-steel binaurals fixed at 15º angle for greater comfort (tactical model with aluminum binaurals)
- Tubing is soft and flexible and has been made without phthalates since 2014
- Adsoft™ Plus silicone eartips with new snap-on connection for the ultimate in wearing comfort and acoustic seal
- Includes accessory kit with two pairs of spare Adsoft™ Plus eartips
- Scope ID tag included
- Weighs 5.8 oz. (164 gr)
- Overall length 31″
- Assembled, inspected, and packaged in the USA
- Lifetime warranty covers all parts
Specification
| Chestpiece Type: | Combination |
| Chestpiece Material: | Stainless |
| Chestpiece Finish: | Satin |
| Chestpiece Weight: | 3.1 oz |
| Chestpiece Weight(gm): | 87.9 g |
| Diaphragm Diameter: | 1-3/4″ |
| Diaphragm Diameter(cm): | 4.45 cm |
| Diaphragm Material: | Epoxy/Fiber Glass |
| Diaphragm Type: | AFD Technology |
| Bell Diameter: | 1-3/8″ |
| Bell Diameter(cm): | 3.5 cm |
| Headset Type: | Clinician |
| Headset Material: | Stainless |
| Headset Finish: | Satin |
| Tubing Length: | 21″ |
| Tubing Length(cm): | 53 cm |
| Total Length: | 31″ |
| Total Length(cm): | 78.75 cm |
| Total Weight: | 5.77 oz |
| Total Weight(gm): | 164 g |
| Scope Warranty: | Lifetime |
Support
| Literature Name | Download | |
|---|---|---|
 |
Adscopes – Instructions for use | Download |
 |
Adscopes – Instrucciones de uso | Download |
 |
Adscopes – Mode d’emploi | Download |
 |
Adscopes – Gebrauchsanweisung | Download |
 |
Adscopes – Istruzioni per l’uso | Download |
Replacement Part
| Chestpiece: | 603-01G |
| Diaphragm 1: | 600-03NG |
| Diaphragm 2: | NA |
| Diaphragm 3: | N/A |
| Ret Ring: | 602-02G |
| Non Chill Ring: | 603-04G |
| Binaural//Tubing Assembly: | 603-05BD |
| Eartips Included 1: | 602-08GN |
| Eartips Included 2: | 602-07GN |
| ID Tag Included: | 697BK |
| Hip Clip: | 218 |
| STH 1: | 219 |
