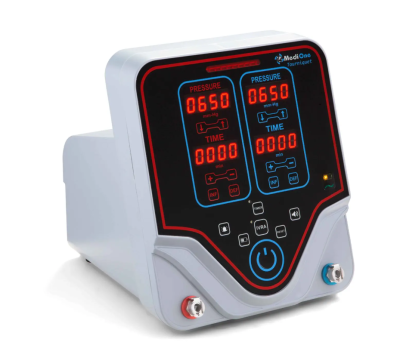

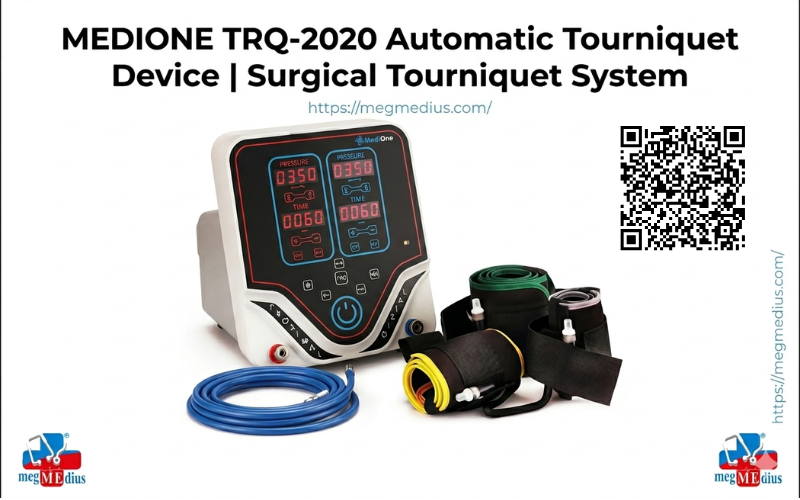

MEDIONE TRQ-2020 Automatic Tourniquet Device – Precision & Safety in Surgical Applications

The MEDIONE TRQ-2020 Automatic Tourniquet Device is an advanced, microprocessor-controlled system designed to deliver safe, accurate, and efficient tourniquet applications in orthopaedic and surgical procedures.

Manufactured in Turkey, this device offers a cost-effective and reliable solution for controlling blood flow in upper and lower extremities during surgery. Its intelligent system design enhances patient safety while ensuring optimal surgical performance.

The TRQ-2020 supports single and dual-channel operations, making it suitable for IVRA (Intravenous Regional Anaesthesia) and simultaneous procedures on multiple limbs.

Key Features

• Microprocessor-Controlled System – Ensures precise pressure regulation
• Dual Channel Operation – Supports two extremities or IVRA procedures
• Automatic Leakage & System Test – Enhances operational safety
• Advanced Safety Alarm System – Visual and audible alerts
• LED Display Screen – Clear monitoring of pressure and settings
• Adjustable Pressure Range – 20 mmHg to 650 mmHg
• Adjustable Application Time – Customizable operation duration
• Timing Alarm Function – Alerts after deflation period
• Built-in Rechargeable Battery – Ensures uninterrupted use
• Optional Mobile Stand with Basket – For enhanced mobility

Technical Specifications

• Model: TRQ-2020
• Brand: MEDIONE
• Control Type: Microprocessor Controlled
• Power Supply: 100–240V, 50–60Hz
• Pressure Range: 20 – 650 mmHg
• Accuracy: ±5 mmHg / ±1 mmHg
• Battery: 12V, 2.6 Ah (Rechargeable)
• Compressor: 12V, max 1.5 bar
• Protection Class: IP20
• Dimensions: 275 × 235 × 268 mm
• Weight: Approx. 4 kg (without accessories)
• Display: LED Screen

Application Methods

• Single Extremity Use – Single-port cuff
• IVRA (Bier Block) – Double-port cuff, dual channel
• Dual Extremity Use – Independent pressure control for each limb

Accessories (Optional & Standard)

• Pediatric, arm, and leg cuffs (various sizes)
• Double bladder cuffs for IVRA procedures
• Connection hose (3 meters)
• Mobile stand with basket
• Latex-free accessories

Benefits

• Enhances surgical precision and safety
• Reduces risk of pressure-related complications
• Easy operation with user-friendly interface
• Flexible usage across multiple surgical procedures
• Reliable performance with built-in safety systems

How to Use

1. Connect the appropriate cuff to the device
2. Select application mode (single, dual, or IVRA)
3. Set desired pressure and time parameters
4. Start the system and monitor via LED display
5. Respond to alarms and adjust settings if needed
6. Deflate cuff after procedure completion

FAQs

1. What is the MEDIONE TRQ-2020 used for?

It is used during surgeries to control blood flow in limbs, especially in orthopedic procedures.

2. Does it support IVRA procedures?

Yes, it supports IVRA using a dual-channel system with double-port cuffs.

3. What is the pressure range of the device?

The adjustable pressure range is 20 mmHg to 650 mmHg.

4. Is the device safe to use?

Yes, it includes automatic leakage tests, safety alarms, and precise pressure control.

5. Does it work during a power failure?

Yes, it has a built-in rechargeable battery for uninterrupted operation.
