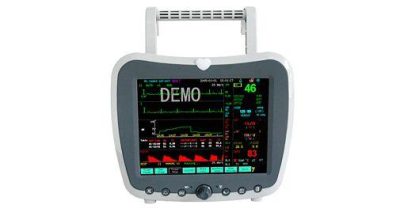

LTP002 PATIENT MONITOR

Description:

Displayer: 8.4″ color TFT LCD screen with maximum 7-waveform display. Adjusting of lightness continuously make patient more comfortable in midnight

Parameters:

◇ Displayer: 8.4″ color TFT LCD screen with maximum 7-waveform display. Adjusting of lightness continuously make patient more comfortable in midnight

◇ Battery: Rechargeable high-energy built-in battery

◇ Advanced streamline outline design, portable, compact, lightweight

◇ Operating menu with multi-language interface selection: English, Spanish, Portuguese, Chinese, French, Arabic, Russian, etc.

◇ Easy operation with user friendly menu structure design and rotary dial

◇ Against electrosurgical interference and defibrillation and no need to disconnect the monitor from the patient in process of defibrillating.

◇ WAN communication function to network with central monitoring system and make long-distance monitoring, diagnosis, maintenance and software upgrade possible

◇ Optional built-in wireless networking function

◇ Support external printer to record graph and trend

◇ Intelligent audio and visual comprehensive alarm

◇ In-hospital applications include emergency pre-and post-operative care, ambulatory surgery, intermediate care/step down units, labor and delivery, and hospital-based special procedure areas.

◇ Suitable for use in physicians’ offices, clinics, outpatient surgical centers, extended care facilities and other patient care areas, which of require affordable monitoring

Standard configuration: ECG, HR, PR, SpO2, ST analysis, RESP*2 (RA-LL impedance and nasal cavity), NIBP (with venous punch), TEMP*2(surface and rectal type), Drug dose calculation.



Optional configuration: Wireless connection, Recorder and, 2-IBP



Technical Parameter



Temperature (surface and rectal)

Measurement range: 25.0 – 45.0 ℃

Accuracy: ± 0.1 ℃

Resolution: 0.1 ℃

response time: ≤ 3 min.

ECG

Input: 5 wires ECG cable

Lead section:Ⅰ,Ⅱ,Ⅲ/ aVR, aVL, aVF/ V

Gain（mm/mV）: 1/4，1/2，1，2，4

Frequency response: Diagnosis    0.05 – 100Hz

                            Monitor　　  0.5 – 40 Hz

                          Surgery      1.0 – 25 Hz

Sweep speed(mm/sec): 12.5, 25, 50

Heart rate range: 30-254 BPM

Heart rate accuracy: ± 1 %

ST segment deviation analysis:   -0.8-+0.8mV

ST accuracy:  ±0.02mv



Respiration Rate(RA-LL impedance and nasal cavity)

Measurement range: 0 – 120 BPM（adult）

Accuracy: ± 1 BPM or 5 %

Resolution: 1 BPM

Environment

Operation           　Storage

Temperature           0.5 – 40 ℃         　-20 – 50 ℃

Relative humidity      ≤ 80%



Pulse Rate

SPO2 measurement range: 0 – 100 %

Resolution: 1 %

Pulse measurement range: 30- 254BPM

Accuracy: ± 2 %

Resolution: 1 BPM



NIBP (Non-invasive blood pressure)

Measurement type : adult, pediatric, neonatal

Measurement range: Systolic　 4.0 – 37.0 kPa

                           Diastolic   1.3 – 33.0 kPa

                           Mean         2.6 – 35.0 kPa

Accuracy : ± 0.4 kPa or 5 %

Resolution: 0.1 kPa

Protection: over pressure



IBP(Invasive blood pressure) (with venous punch)

(Option)

Measurement range: -1.3~40kPa (-10~300mmHg)

Channel: 2 channel

Transducer sensitivity: 5MV/V/mmHg

Unit display: KPa or mmHg selectable



Power requirements

Input:  98～260 V AC,  50/60Hz

Consumption:    ≤ 80VA



Safety standard: IEC 60601-1

Quality System: ISO13485: 2003
