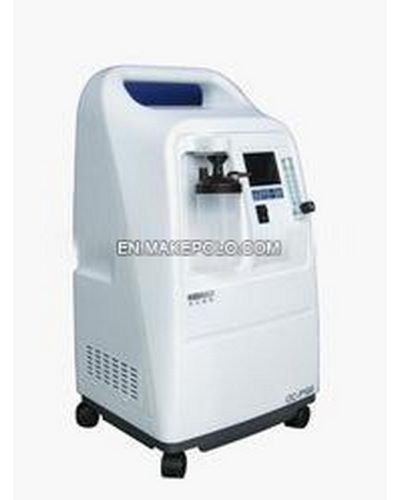

OC-E100 – Floor Oxygen Concentrator

Specification*

Model OC-E100

Operating System

Timed Cycle/Rapid Pressure
Swing

Power Consumption (W)

480

Electrical Requirement

(V/HZ)

220±10%   50±1

or Customize as demand

Delivery Rate(L/min)

0-10

Oxygen Concentration (%)

93 /-3%

Outlet Pressure (MPa)

0.05-0.08

Sound Level (dBA)

standard type:8L/min, ≤50

Operating Environment Ambient Temperature
(centigrade)

10-40

Humidity Range
(%)

≤80

Equipment Class and Type

Class IIa

Safety Alarms & Features

Power Failure,

High Pressure / Low
Pressure,

Low Oxygen Concentration,
Temperature,

Current overload or line surge shutdown,
Thermal Switch, 40 psig Pressure Relief Valve

Status Display Screen

Large scale LCD

Oxygen Concentration Display

Red, green, yellow Bar

Intelligent fault diagonis

Standard Configuration

Net weight (kg)

25

Gross Weight (kg)

27

Dimensions (mm)

380X340X690

Carton mst (mm)

440X390X750

Certificates:

CE0123; ISO13485; Free Sale

Warranty:

1 years.
